What are the three types of dimensioning?
The basic types of dimensioning are linear, radial, angular, ordinate, and arc length. Use the DIM command to create dimensions automatically according to the object type that you want to dimension.
What dimensioning standard is used in the United States?
ASME Y14.
In the United States, the most common standard for dimensioning is ASME Y14.
What are the dimensioning?
Dimensioning is the process of measuring either the area or the volume that an object occupies. It is the method of calculating capacity for the storage, handling, transporting and invoicing of goods.
What is GD used for?
GD, short for Geometric Dimensioning and Tolerancing, is a system for defining and communicating design intent and engineering tolerances that helps engineers and manufacturers optimally control variations in manufacturing processes.
What are different types of dimensioning?

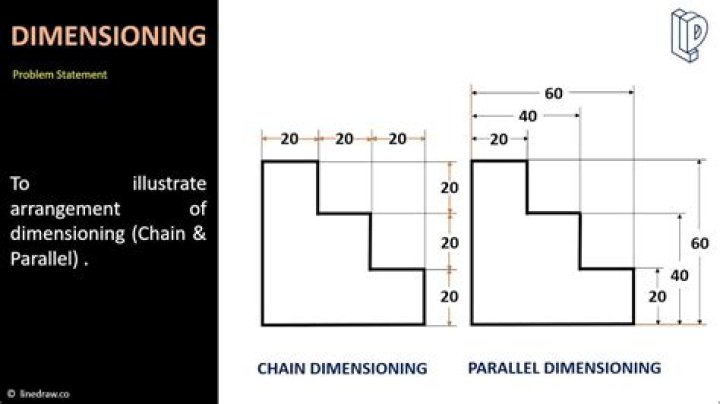

5. Types of Dimensioning
- Chain Dimensioning.
- Parallel Dimensioning.
- Combined Dimensioning.
- Progressive Dimensioning.
- Dimensioning by Co-ordinates.
- Equidistant Dimensioning.
- Repeated Dimensions.
What are the elements of dimensioning?
The elements of dimensioning include the projection line, dimension line, leader line, dimension line origin indication, its termination, notes, the dimension, etc.
What is the current ASME standard?
The 2021 ASME BPVC officially is the latest edition and is required for ASME Stamp Certification. IHS Markit guarantees you will receive the best pricing and immediate delivery of the 2021 Code.
What is difference between ISO and ASME?
The main differences between the ISO and ASME Drawing Standard in Fusion 360 are as follows: The sheet size: ISO uses A series paper sizes. ASME uses ANSI standard paper sizes.
Is size a dimension?
A dimension is an expression to define a specific property or characteristic of something. Dimensions are not the same as size, but the size of something can be expressed as one of many dimension.
Who needs GD?
Who Needs GD?
| Checkers | Chemical Engineers | Drafters |
|---|---|---|
| Electrical Engineers | Inspectors | Machinists |
| Mechanical Engineers | Mold & Die Makers | Product Designers |
| Quality Departments | Tooling Designers |
What do you need to know about dimensioning?
The ability to dimension properly requires the following: 1. Technique of dimensioning: the standard for appearance of lines, the spacing of dimensions, the size of arrowheads, and so on allow others to interpret your drawing. A typical dimensioned drawing is shown below.
What are the standards for a dimensioning checklist?
Dimensioning standards. Dimensioning Checklist Each dimension should be written clearly with only one way to be interpreted. A feature should be dimensioned only once. Dimension and extension lines should not cross. Each feature should be dimensioned. Dimension features or surfaces should be done to a logical reference point.
What are the standards for dimensioning a drawing?
Dimensioning Standards In order for the drawings to be dimensioned so that all people can understand them, we need to follow standards that every company in the world must follow. Standards are created by these organizations: —ANSI —ISO —MIL —DOD —DIN —JIS —CEN Standards Institutions • ANSI – American National Standards Institute.
When do you use a progressive dimensioning system?
Progressive Dimensioning This method is adopted when dimension has to be established from a particular datum. The overall dimensions are placed outside the smaller dimensions this dimension is showed by the common reference line.
